SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response

    Buy cheap SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response from wholesalers

    Buy cheap SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response from wholesalers
    • Buy cheap SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response from wholesalers
    • Buy cheap SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response from wholesalers

    SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response

    Ask Lasest Price
    Brand Name : Yokogawa
    Model Number : SC42-SP24
    Certification : ATEX
    Price : Negotiate
    Payment Terms : T/T, Alipay, Paypal
    Supply Ability : 100pcs per month
    Delivery Time : stock
    • Product Details
    • Company Profile

    SC42-SP24 Yokogawa Conductivity Sensor Fast Temperature Response

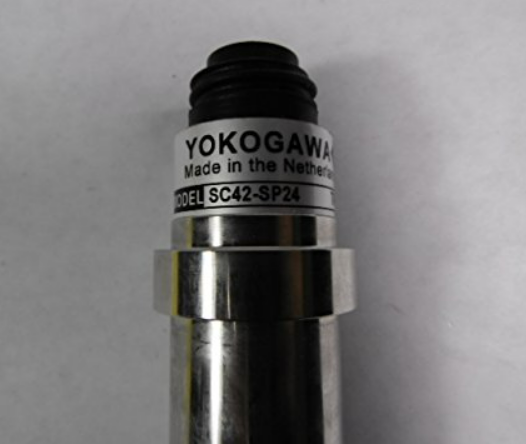

    Yokogawa SC42-SP24 Conductivity Sensor


    Product Details:
    Manufacturer : Yokogawa
    Product No. : SC42-SP24

    Product Type : Conductivity Sensor


    Plug-in flow sensors (SS)
    Stainless steel cells for 2-electrode type with cell constants 0.01 and 0.1 cm-1.
    These conductivity sensors have a stainless steel body and PEEK (Poly Ether Ether Ketone) inner insulation for high pressure/temperature applications. A special treatment of the electrodes ensures optimal resistance against polarisation. The sensor includes a built-in resistance thermometer Pt1000 for automatic temperature compensation.
    The combination sensor plug and cable socket is watertight and temperature resistant up to 100ºC (212 ºF).
    The dimensions of the sensor are standardised for mounting in the standard fitting program of Yokogawa.


    Features
    • High precision of the cell constant (individually calibrated).
    • Fast temperature response.
    • High pressure/temperature specifications.
    • Built-in resistance thermometer, Pt1000 RTD
    • Plug-socket cable connection for easy installation and maintenance
    • Standardised dimensions for mounting in flow- and immersion fittings
    • Material certificate 3.1 according to EN 10014 are standard included (only wetted metal parts


    Typical Applications
    1. Cell constant = 0.01 cm-1
    For measurement in very low conductive solutions like pure water, condensate, demineralised water, distilled water, etc.
    2. Cell constant = 0.1 cm-1
    For measurement of low conductive solutions like boiler feed water, surface water, etc


    General Specifications
    1. Materials

    Wetted parts
    a. Body : Stainless steel AISI 316
    b. Insulation : PEEK (Poly Ether Ether Ketone)
    c. Electrode : Stainless steel AISI 316
    d. Quad-rings, O-rings : Viton
    e. Connector : Polyamide with gold plated contacts
    2.Weight and immersion length (L in figure)

    Model SC42-SP24 : 440 gram; 110 mm (L)
