    3500/65-01-00 Bently Nevada Vibration Monitoring System 16 Channel Temperature Monitor

    Ask Lasest Price
    Brand Name : Bently Nevada
    Model Number : 3500/65-01-00
    Certification : ATEX
    Price : Negotiable
    Payment Terms : T/T, Allipay, paypal
    Supply Ability : 100pcs per month
    Delivery Time : 12-18 weeks
    • Product Details
    • Company Profile

    3500/65-01-00 Bently Nevada Vibration Monitoring System 16 Channel Temperature Monitor

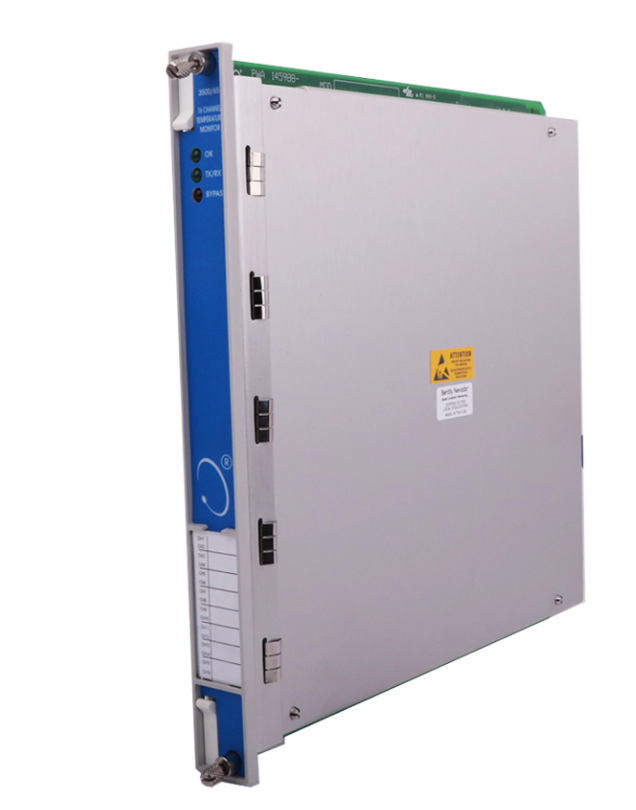

    Bently Nevada 3500/65-01-00 16-Channel Temperature Monitor


    Description

    The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints.
    The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
    In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid singlepoint failures.


    Information

    3500/65-AA-BB
    • A: I/O Module Type
    01 RTD/Isolated Tip TC with Internal Terminations
    02 RTD/Isolated Tip TC with External Terminations
    • B: Agency Approval Option
    00 None
    01 CSA/NRTL/C
    02 CSA/ATEX


    Cables
    3500/65 Transducer (XDCR) Signal to External Termination (ET) Block Cable
    134544-AAAA-BB
    • A: Cable Length
    0005 5 feet (1.5 metres)
    0007 7 feet (2.1 metres)
    0010 10 feet (3 metres)
    0025 25 feet (7.5 metres)
    0050 50 feet (15 metres)
    0100 100 feet (30.5 metres)
    • B: Assembly Instructions
    01 Not Assembled
    02 Assembled


    Spares
    • 172931 3500/65 User Guide
    • 145988-02 3500/65 Monitor
    • 172103-01 3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations
    • 173005 Connector Header, Internal Termination, 20-position, Black
    • 172109-01 3500/65 RTD/ Isolated Tip TC I/O Module, External Terminations
    • 172115-01 RTD/Isolated Tip TC External Termination Block (Euro Style Connectors) Specifications
