    SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC

    Ask Lasest Price
    Brand Name : SICK
    Model Number : SRS50-HFA0-K21
    Price : Negotiable
    Payment Terms : T/T, Allipay, paypal
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC

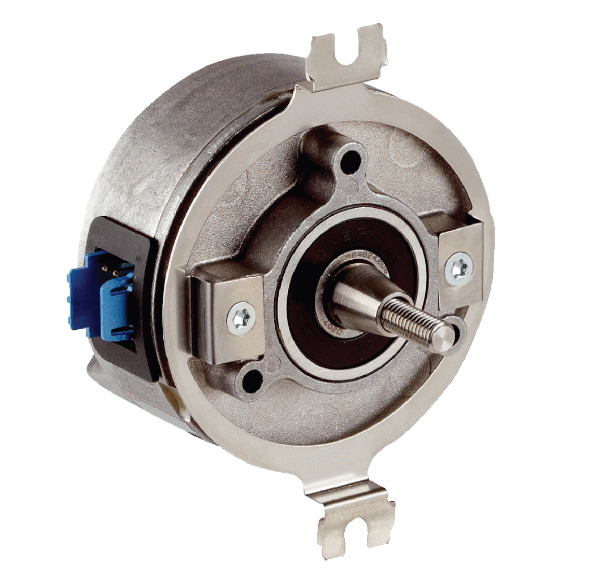

    SICK SRS50-HFA0-K21 Motor Feedback Systems: SRS/SRM50

    Electrical data

    Connection typeMale connector, 8-pin, radial
    Supply voltage7 V DC ... 12 V DC
    Recommended supply voltage8 V DC
    Current consumption80 mA 1)
    Output frequency for sine/cosine signals≤ 200 kHz
    MTTF: mean time to dangerous failure235 years (EN ISO 13849) 2)

    Mechanical data

    Shaft versionTapered shaft
    Flange type / stator couplingSpring mounting plate, Spring mounting plate
    DimensionsSee dimensional drawing
    Weight≤ 0.2 kg
    Moment of inertia of the rotor10 gcm²
    Operating speed≤ 12,000 min⁻¹
    Angular acceleration≤ 200,000 rad/s²
    Operating torque0.2 Ncm
    Start up torque+ 0.4 Ncm
    Permissible movement static± 0.5 mm radial
    ± 0.75 mm axial
    Permissible movement dynamic± 0.1 mm radial
    ± 0.2 mm axial
    Angular motion perpendicular to the rotational axis, static± 0.005 mm/mm
    Angular motion perpendicular to the rotational axis, dynamic± 0.0025 mm/mm
    Life of ball bearings3.6 x 109 revolutions

    Ambient data

    Operating temperature range–30 °C ... +115 °C
    Storage temperature range–40 °C ... +125 °C, without package
    Relative humidity/condensation90 %, Condensation not permitted
    Resistance to shocks100 g, 10 ms, 10 ms (according to EN 60068-2-27)
    Frequency range of resistance to vibrations20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
    EMCAccording to EN 61000-6-2 and EN 61000-6-3 1)
    Enclosure ratingIP40, with mating connector inserted (IEC 60529)
