    KFD2-UT2-1 PEPPERL FUCHS Isolated Barrier Universal Temperature Converter Configurable By PACTware

    PEPPERL FUCHS KFD2-UT2-1 Universal Temperature Converter Configurable By PACTware


    Product Details:
    Manufacturer : Pepperl+Fuchs
    Product No. : KFD2-UT2-1
    Product Type : Universal Temperature Converter


    Features:
    • 1-channel signal conditioner
    • 24 V DC supply (Power Rail)
    • Thermocouple, RTD, potentiometer or voltage input
    • Current output 0/4 mA ... 20 mA
    • Sink or source mode
    • Configurable by PACTware
    • Line fault (LFD) and sensor burnout detection
    • Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511

    Function
    This signal conditioner provides the galvanic isolation between field circuits and control circuits.

    The device converts the signal of a resistance thermometer, thermocouple, or potentiometer to a proportional output current.

    The removable terminal block K-CJC-** is available as an accessory for internal cold junction compensation of thermocouples.

    A fault is signalized by LEDs and a separate collective error message output.

    The device is easily configured by the use of the PACTware configuration software.

    For additional information, refer to the manual and www.pepperl-fuchs.com.


    Technical Data

    General specifications
    Signal typeAnalog input
    Functional safety related parameters
    Safety Integrity Level (SIL)SIL 2
    Supply
    Connectionterminals 14+, 15- or power feed module/Power Rail
    Rated voltage20 ... 30 V DC
    Ripplewithin the supply tolerance
    Power dissipation≤ 0.98 W
    Power consumptionmax. 0.98 W
    Interface
    Programming interfaceprogramming socket
    Input
    Connection sidefield side
    Connectionterminals 1, 2, 3, 4
    RTDtype Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751: 1995)
    type Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94)
    type Cu10, Cu50, Cu100 (P50353-92)
    type Ni100 (DIN 43760)
     Measuring currentapprox. 200 µA with RTD
     Types of measuring2-, 3-, 4-wire connection
     Lead resistancemax. 50 Ω per line
     Measurement loop monitoringsensor breakage, sensor short-circuit
    Thermocouplestype B, E, J, K, N, R, S, T (IEC 584-1: 1995)
    type L (DIN 43710: 1985)
    type TXK, TXKH, TXA (P8.585-2001)
     Cold junction compensationexternal and internal
     Measurement loop monitoringsensor breakage
    Potentiometer0 ... 20 kΩ (2-wire connection), 0.8 ... 20 kΩ (3-wire connection)
    Voltageselectable within the range -100 ... 100 mV
    Input resistance≥ 1 MΩ (-100 ... 100 mV)
    Output
    Connection sidecontrol side

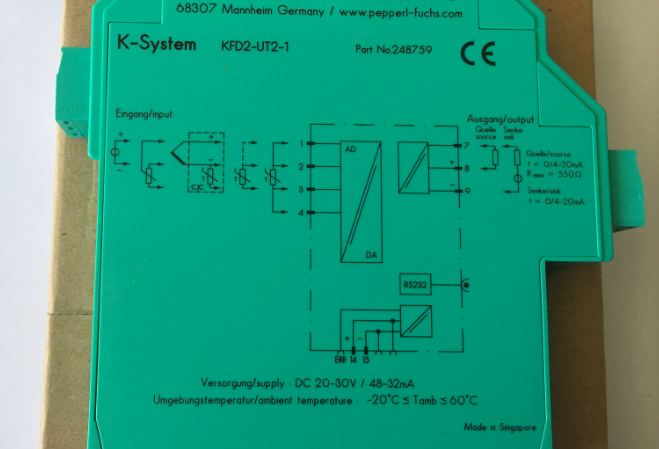

    Connectionoutput I: terminal 7: source (-), sink (+), terminal 8: source (+), terminal 9: sink(-)
    OutputAnalog current output
     Current range0 ... 20 mA or 4 ... 20 mA
     Fault signaldownscale 0 or 2 mA, upscale 21.5 mA (acc. NAMUR NE43)
     Sourceload 0 ... 550 Ω
    open-circuit voltage ≤ 18 V
     SinkVoltage across terminals 5 ... 30 V. If the current is supplied from a source > 16.5 V,
    series resistance of ≥ (V - 16.5)/0.0215 Ω is needed, where V is the source voltage.
    The maximum value of the resistance is (V - 5)/0.0215 Ω.
    Transfer characteristics
    Deviation
     After calibrationPt100: ± (0.06 % of measurement value in K + 0.1 % of span + 0.1 K (4-wire connection))
    thermocouple: ± (0.05 % of measurement value in °C + 0.1 % of span + 1 K (1.2 K for types R and S)) , includes ± 0.8 K fault of the cold junction compensation (CJC)
    mV: ± (50 µV + 0.1 % of span)
    potentiometer: ± (0.05 % of full scale + 0.1 % of span, (excludes faults due to lead resistance))
     Influence of ambient temperaturePt100: ± (0.0015 % of measurement value in K + 0.006 % of span)/K ΔTamb*)
    thermocouple: ± (0.02 K + 0.005 % of measurement value in °C + 0.006 % of span)/K ΔTamb*)), influence of cold junction compensation (CJC) included
    mV: ± (0.01 % of measurement value + 0.006 % of span)/K ΔTamb*)
    potentiometer: ± 0.006 % of span/K ΔTamb*)
    *) ΔTamb = ambient temperature change referenced to 23 °C (296 K)
     Influence of supply voltage< 0.01 % of span
     Influence of load≤ 0.001 % of output value per 100 Ω
    Reaction timeworst case value (sensor breakage and/or sensor short circuit detection enabled)
    mV: 1 s, thermocouples with CJC: 1.1 s, thermocouples with fixed reference temperature: 1.1 s, 3- or 4-wire RTD: 920 ms, 2-wire RTD: 800 ms, Potentiometer: 2.05 s
    Galvanic isolation
    Input/Other circuitsbasic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
    Output/supply, programming inputfunctional insulation, rated insulation voltage 50 V AC
    There is no electrical isolation between the programming input and the supply.
    The programming cable provides galvanic isolation so that ground loops are avoided.
    Indicators/settings
    Display elementsLEDs
    Configurationvia PACTware
    Labelingspace for labeling at the front
    Directive conformity
    Electromagnetic compatibility
     Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
    Conformity
    Electromagnetic compatibilityNE 21:2006
    Degree of protectionIEC 60529:2001
    Ambient conditions
    Ambient temperature-20 ... 60 °C (-4 ... 140 °F)
    Mechanical specifications
    Degree of protectionIP20
    Connectionscrew terminals
    Massapprox. 130 g
    Dimensions20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
     Height119 mm
     Width20 mm
     Depth115 mm
    Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
    General information
    Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
