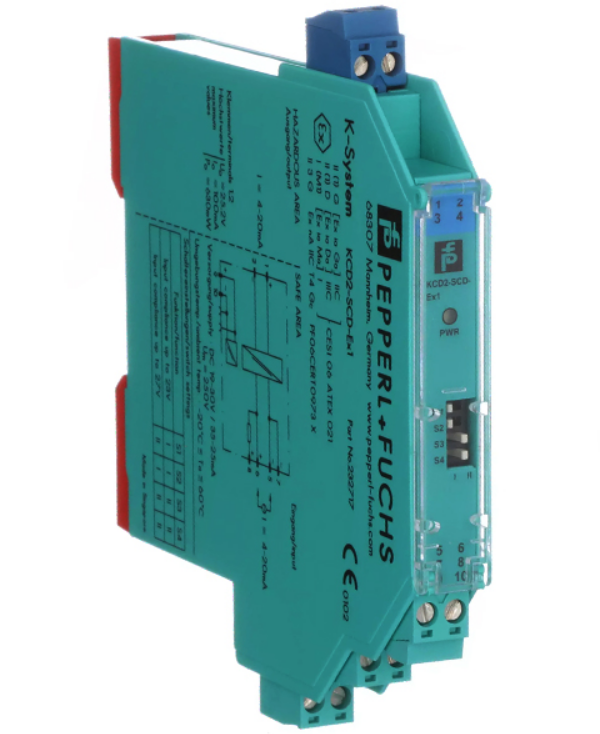

    P&F Barrier Process Automation KCD2-SCD-EX1 Compact Analog Output W/Hart

    Ask Lasest Price
    Brand Name : PF
    Model Number : KCD2-SCD-EX1
    Certification : ATEX
    Price : Negotiable
    Payment Terms : Alipay
    Supply Ability : 100pcs per month
    Delivery Time : stock
    • Product Details
    • Company Profile

    P&F Barrier Process Automation KCD2-SCD-EX1 Compact Analog Output W/Hart

    Pepperl+Fuchs Process Automation KCD2-SCD-EX1 Compact Analog Output W/Hart


    Product Details:
    Manufacturer : Pepperl+Fuchs
    Product No. : KCD2-SCD-EX1
    Product Type : SMART Current Driver


    Features:
    • 1-channel isolated barrier
    • 24 V DC supply (Power Rail)
    • Current output up to 650 Ω load
    • HART-IP and valve positioner
    • Lead breakage monitoring
    • Housing width 12.5 mm
    • Up to SIL 2 (SC 3) acc. to IEC/EN 61508

    Function

    This isolated barrier is used for intrinsic safety applications.

    The device repeats the input signal from a control system to drive SMART I/P converters, electrical valves, and positioners located in a hazardous area.

    Digital signals are superimposed on the analog values at the field side or control side and are transferred bi-directionally.

    The current is transferred via a DC/DC converter and repeated at the output terminals.

    An open field circuit presents a high impedance to the control side to allow alarm conditions to be monitored by the control system.

    Test sockets for the connection of HART communicators are integrated into the terminals of the device.


    Product Specifications
    Alternate Mfr Part Number:232717
    Current Rating: 30 mA
    Input Type: Current
    Maximum Operating Temperature: 60 °C
    Minimum Operating Temperature: -20 °C
    Module Type: Isolated
    Mounting Type: DIN Rail Mount
    Number of Channels: 1
    Output Type: Analogue
    Range Input: 4 to 20
    Special Features: Lead Breakage Monitoring
    Standards: 16-533FM-12 (cFMus), 6GYJ 12.1421, ANZEx 08.2009X, CE, Certificate No 1056, GESI ATEX, IECEx CES 06.0001, TCCExEE, cULus
    Supply Voltage: 19-30 VDC
    Temperature Operating Range: -20 to +60 °C
    Type: Barrier
