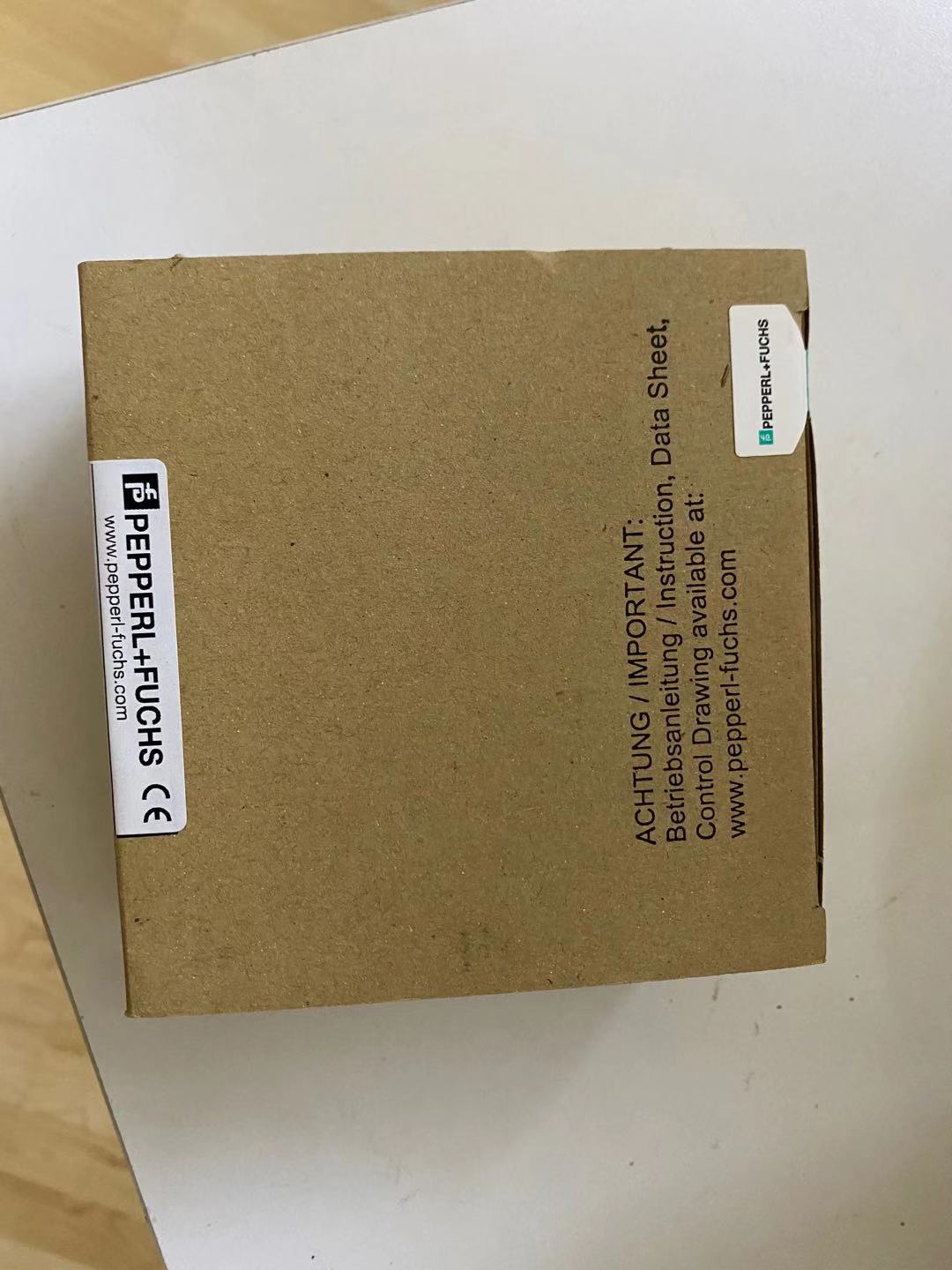

    KFA6-DWB-EX1.D PEPPERL FUCHS Isolated Barrier Rotation Speed Monitor

    Ask Lasest Price
    Brand Name : PF
    Model Number : KFA6-DWB-EX1.D
    Certification : ATEX
    Price : Negotiate
    Payment Terms : T/T, Alipay, Paypal
    Supply Ability : 100pcs per month
    Delivery Time : stock
    • Product Details
    • Company Profile

    KFA6-DWB-EX1.D PEPPERL FUCHS Isolated Barrier Rotation Speed Monitor

    Product Details:
    Manufacturer : Pepperl+Fuchs
    Product No. : KFA6-DWB-EX1.D
    Product Type : Rotation Speed Monitor


    Features:

    • 1-channel isolated barrier
    • 230 V AC supply
    • Dry contact or NAMUR inputs
    • Input frequency 1 mHz ... 5 kHz
    • 2 relay contact outputs
    • Start-up override
    • Configurable by keypad
    • Line fault detection (LFD)
    • Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN

    Function

    This isolated barrier is used for intrinsic safety applications. It monitors for an overspeed or underspeed condition of a discrete signal (NAMUR sensor/ mechanical contact) from a hazardous area by comparing the input frequency to the user programmed reference frequency.

    An overspeed or underspeed condition is signaled via the relay outputs. Line fault detection of the field circuit is indicated by a red LED and relay. The start-up override feature sets relay outputs to default conditions programmed by the user for up to 1,000 seconds.

    The unit is easily programmed by the use of a keypad located on the front of the unit.


    Technical data

    1. Product Description
    230 V AC
    2. General specifications
    Signal type: Digital Input
    3. Functional safety related parameters
    Safety Integrity Level (SIL): SIL 2
    4. Supply
    Connection: terminals 23, 24
    Rated voltage: 230 V AC ± 10 %
    Rated current: 18 mA
    Power dissipation/power consumption: ≤ 2 VA / 2 VA
    5. Input
    Connection side: field side
    Connection: Input I: intrinsically safe: terminals 1+, 3-
    Input II: non-intrinsically safe: terminals 13+, 14-
    Input I: acc. to EN 60947-5-6 (NAMUR)
    Pulse duration: > 50 µs
    Input frequency: 0.001 ... 5000 Hz
    Line fault detection: breakage I ≤ 0.15 mA; short-circuit I > 6.5 mA
    Input II: startup override: 1 ... 1000 s, adjustable in steps of 1 s
    Active/Passive: I > 4 mA (for min. 100 ms)/ I < 1 mA
    Open circuit voltage/short-circuit current: 18 V / 5 mA
    6. Output
    Connection side: control side
    Connection: output I: terminals 10, 11, 12
    output II: terminals 16, 17, 18
    Output I, II: signal, relay
    Contact loading: 253 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 A
    Mechanical life: 5 x 107 switching cycles
    Energized/De-energized delay: approx. 20 ms / approx. 20 ms
    7. Indicators/settings
    Display elements: LEDs , display
    Control elements: Control panel
    Configuration: via operating buttons
    Labeling: space for labeling at the front
