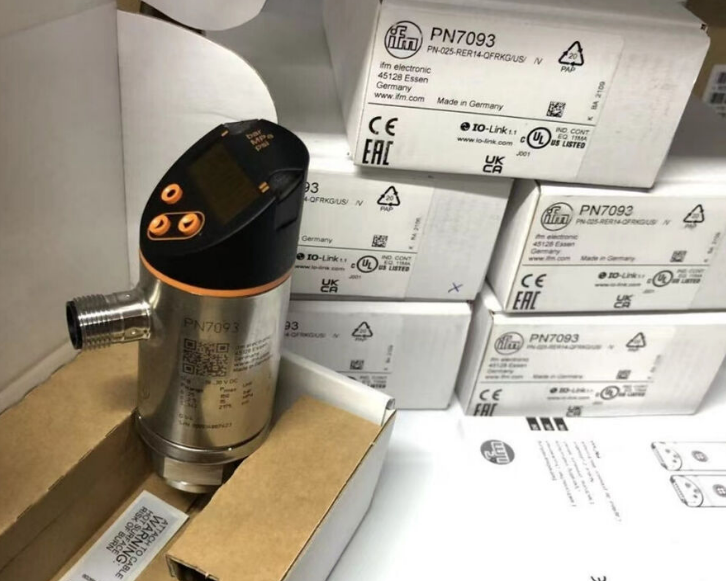

    IFM PN7093 Pressure Sensor With Display PN-025-RER14-QFRKG/US/ /V

    Ask Lasest Price
    Brand Name : IFM
    Model Number : PN7093
    Price : Negotiable
    Payment Terms : T/T, Allipay, paypal
    Supply Ability : 100pcs per month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    IFM PN7093 Pressure Sensor With Display PN-025-RER14-QFRKG/US/ /V

    IFM PN7093 Pressure sensor with display PN-025-RER14-QFRKG/US/ /V

    Overview

    • Two switching outputs, one of them with IO-Link communication interface
    • Red/green display for clear identification of the acceptable range
    • The process connection can be rotated for optimum alignment
    • With long-term stability thanks to high overload protection
    • Robust design for use in harsh industrial environments

    Product characteristics

    Number of inputs and outputsNumber of digital outputs: 2
    Measuring range0...100 bar0...1450 psi0...10 MPa
    Process connectionthreaded connection G 1/4 Internal thread

    Outputs

    Total number of outputs2
    Output signalswitching signal; IO-Link; (configurable)
    Electrical designPNP/NPN
    Number of digital outputs2
    Output functionnormally open / closed; (configurable)
    Max. voltage drop switching output DC [V]2.5
    Permanent current rating of switching output DC [mA]150; (200 (...60 °C) 250 (...40 °C))
    Switching frequency DC [Hz]< 170
    Short-circuit protectionyes
    Type of short-circuit protectionyes (non-latching)
    Overload protectionyes

    Mechanical data

    Weight [g]235
    Materialstainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
    Materials (wetted parts)stainless steel (1.4404 / 316L); ceramics; FKM
    Min. pressure cycles100 million
    Tightening torque [Nm]25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating)
    Process connectionthreaded connection G 1/4 Internal thread
    Restrictor element integratedno (can be retrofitted)
